NON-CONTACT TOOL SETTING AND TOOL MONITORING
laser control series
- Tool setting and monitoring at nominal spindle speed
- Measurement of all cutting materials and tools in the real clamping system High quality laser diodes and optics
- Focused laser beam for highest precision and measurement of smallest tool diameters100% reliability through Blum protection system
LC50-Digilog
LC50-Digilog
LC50-Digilog
LC52-Digilog
LC50-Digilog
LC50-Digilog
LC53-DIGILOG
Micro Compact NT
Micro Compact NT
Micro Compact NT
Micro Compact NT
Micro Compact NT
LC50-DIGILOG

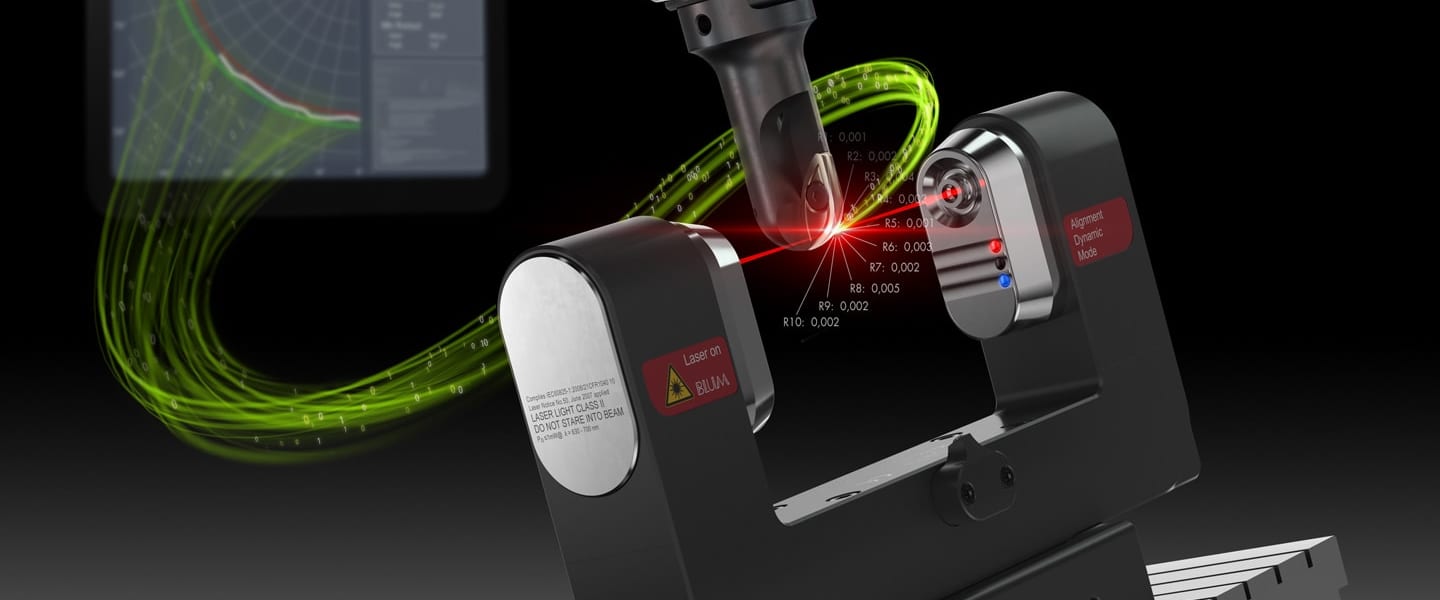

Laser measuring system for CNC machine tools that is unique worldwide for non-contact tool measurement and tool monitoring under the harshest conditions. Unbeatably fast, precise and reliable thanks to the latest DIGILOG technology, premium laser optics and perfected BLUM protection system.
The World's Most Advanced Laser Measuring System
The World's Most Advanced Laser Measuring System
The World's Most Advanced Laser Measuring System
- Highly dynamic measurement of all tool parameters
- Non-contact measurement of all tool types, shapes, and cutting materials
- Recognition of changes in geometry such as tool cutting edge wear
- Consistently good part precision through process-integrated temperature compensation
- Reliable compensation for spindle drift and runout errors
- Run-out monitoring detects bad tool holders and soiling
- Low-manpower, automated operation
Unique DIGILOG Technology
The World's Most Advanced Laser Measuring System
The World's Most Advanced Laser Measuring System
- Up to 60% less measuring and checking time
- Thousands of measuring values of all tool cutting edges per second
- Evaluation of a data stream
- Dynamic adjustment of the measuring speed according to the nominal tool rpm
- Automatic filtering of dirt and cooling lubricant residue on tool
- DIGILOG calibration with integrated run-out monitoring
- In-process reliability under coolant in a new dimension
Premium Laser Optics and Protection System
The World's Most Advanced Laser Measuring System
Premium Laser Optics and Protection System
- High-end laser optics for optimum performance under the harshest conditions
- Repeatability in nanometre range
- Maximum absolute accuracy with focused laser beam
- Measurement of micro-tools and very small cutting-edge geometries
- Maximized homogeneity of beam shape for optimum results even under coolant mist
- Absolute accuracy better than all comparable measuring systems
- Extremely powerful stream of barrier air to provide optimum protection for the optics
- Explosive cleaning of the aperture
LC52-DIGILOG
Laser measuring system with 3D touch probe for setting and monitoring the entire tool spectrum of combined turning/milling machines. Unbeatably precise and reliable thanks to the latest DIGILOG technology, premium laser optics and adapted 3D probe
The World's Most Advanced Laser Measuring System
The World's Most Advanced Laser Measuring System
The World's Most Advanced Laser Measuring System
- Highly dynamic measurement of all tool parameters
- Non-contact measurement of all tool types, shapes, and cutting materials
- Recognition of changes in geometry such as tool cutting edge wear
- Consistently good part precision through process-integrated temperature compensation
- Reliable compensation for spindle drift and run-out errors
- Automatic run-out monitoring detects bad tool holders and soiling
- Low-manpower, automated operation
Unique DIGILOG Technology
The World's Most Advanced Laser Measuring System
The World's Most Advanced Laser Measuring System
- Up to 60% less measuring and checking time
- Thousands of measuring values of all tool cutting edges per second
- Evaluation of a data stream
- Dynamic adjustment of the measuring speed according to the nominal tool rpm
- Automatic filtering of dirt and cooling lubricant residue on tool
- DIGILOG calibration with integrated run-out monitoring
- In-process reliability under coolant in a new dimension
Premium Laser Optics and Protection System
The World's Most Advanced Laser Measuring System
Premium Laser Optics and Protection System
- High-end laser optics for optimum performance under the harshest conditions
- Repeatability in nanometre range
- Maximum absolute accuracy with focused laser beam
- Measurement of micro-tools and very small cutting-edge geometries
- Maximized homogeneity of beam shape for optimum results even under coolant mist
- Absolute accuracy better than all comparable measuring systems
- Extremely powerful stream of barrier air to provide optimum protection for the optics
- Explosive cleaning of the aperture
LC53-DIGILOG
Laser light barrier with separate transmitting and receiving unit for non-contact tool measurement and fast tool breakage detection under the harshest conditions. Precise and reliable thanks to the latest DIGILOG technology, high-quality laser optics and the unique BLUM protection system.
Process reliable and precise
Premium laser optics & protection system
Process reliable and precise
- No interfering contour in the working area when installed on the machine wall
- Non-contact measurement of all tool types, shapes, and cutting materials
- Recognition of changes in geometry such as tool cutting edge wear or tool breakage
- Run-out monitoring detects bad tool holders and soiling
- Innovative quick mounting system
- Only two connecting lines
- Low-manpower, automated operation
Unique DIGILOG Technology
Premium laser optics & protection system
Process reliable and precise
- Short measuring and testing time
- Thousands of measuring values of all tool cutting edges per second
- Evaluation of a data stream
- Dynamic adjustment of the measuring speed according to the nominal tool rpm
- Automatic filtering of dirt and cooling lubricant residue on tool
- DIGILOG calibration with integrated run-out monitoring
- In-process reliability under coolant in a new dimension
Premium laser optics & protection system
Premium laser optics & protection system
Premium laser optics & protection system
- High-end laser optics for optimum performance under the harshest conditions
- Greater flexibility in determining the measuring position
- Maximized homogeneity of beam shape for optimum results even under coolant mist
- Extremely powerful stream of barrier air to provided optimum protection for the optics
- Explosive cleaning of the aperture
MICRO COMPACT NT
Laser measuring system for CNC machining centers for non-contact tool measurement and tool monitoring under the harshest conditions. Unbeatable precision and reliability due to high-quality laser optic, intelligent NT Electronics and unique BLUM protection system.
Proven High-Precision Laser Measuring System
Proven High-Precision Laser Measuring System
Proven High-Precision Laser Measuring System
- Support systems provide highest precision
- Laser diodes and lenses of the highest quality
- Intelligent NT-Technology
- Maximum absolute accuracy with focused laser beam
- Programmable by integrated microprocessor
- Pre-aligned laser for easy mounting
- Extremely robust and long-lasting
Non-Contact, Optical Tool Measurement
Proven High-Precision Laser Measuring System
Proven High-Precision Laser Measuring System
- Fast, precise and automatic measurement of all tool types, shapes and cutting materials (PKD, CBN, etc.)
- Tool measurement in real clamping condition and at nominal speed
- Compensation of spindle drift and concentricity errors of the tool cutting edges
- Reliable measurement of sensitive and very small tools
- Measurement of multi-staged tools and special tool
100 % Reliable Due to BLUM Protection System
Proven High-Precision Laser Measuring System
100 % Reliable Due to BLUM Protection System
- Reliable tool measurement thanks to patented NT Electronics and barrier air flow
- Perfect protection for the lens from contamination through proven mechanical shutter
- BLUM pneumatic unit for maximum availability and low-maintenance operation
- Reliable tool cleaning by high-end blow nozzles
- Very low air consumption
- Protection class IP68
